Airtek Ltd. — 514-336-3820 — sales@airtekltd.com — www.airtekltd.com

Abrasives
Cartridge Rolls
Tapered Threaded Mandrel for Cartridge Rolls
mandrel
Part # Pilot
Diameter		 Pilot
Length		 Shank
Diameter		 Shank
Length
90110 5/64" 1" 1/8" 1"
90344 3/32" 3/4" 1/4" 1"
90345 3/32" 1" 1/4" 1"
90111 3/32" 1" 1/8" 1"
90112 1/8" 1/2" 1/8" 1"
90113 1/8" 3/4" 1/8" 1"
90114 1/8" 1" 1/8" 1"
90115 1/8" 1 1/2" 1/8" 1"
90116 1/8" 1/2" 1/4" 1 1/4"
90117 1/8" 3/4" 1/4" 1 1/4"
90118 1/8" 1" 1/4" 1 1/4"
90348 1/8" 1" 1/4" 4"
90137 1/8" 1" 1/4" 6"
90138 1/8" 1" 1/4" 8"
90119 1/8" 1 1/2" 1/4" 1 1/4"
Part # Pilot
Diameter		 Pilot
Length		 Shank
Diameter		 Shank
Length
90120 1/8" 2" 1/4" 1 1/4"
90123 3/16" 1/2" 1/4" 1 1/4"
90124 3/16" 3/4" 1/4" 1 1/4"
90125 3/16" 1" 1/4" 1 1/4"
90126 3/16" 1 1/2" 1/4" 1 1/4"
90127 3/16" 2" 1/4" 1 1/4"
90128 1/4" 1/2" 1/4" 1 1/4"
90129 1/4" 3/4" 1/4" 1 1/4"
90130 1/4" 1" 1/4" 1 1/4"
90139 1/4" 1" 1/4" 6"
90140 1/4" 1" 1/4" 8"
90131 1/4" 1 1/2" 1/4" 1 1/4"
90180 1/4" 1 1/2" 1/4" 6"
90181 1/4" 1 1/2" 1/4" 8"
90132 1/4" 2" 1/4" 1 1/4"

^Top

Straight Cartridge Rolls

Straight Cartridge Rolls Aluminum Oxide Resin Bond

cartridge roll

Part # Diameter
x Length
x Hole		 Grit
10039 3/16" x 3/4" x 3/32" 80
10040 100
10041 120
10042 150
10043 180
10045 240
10046 320
10049 3/16" x 1" x 3/32" 80
10050 100
10051 120
10052 150
10053 180
10055 240
10056 320
10078 1/4" x 3/4" x 1/8" 60
10079 80
10080 100
10081 120
10082 150
10083 180
10085 240
10086 320
10088 1/4" x 1" x 1/8" 60
10089 80
10090 100
10091 120
10092 150
10093 150
10095 240
10096 320
10108 1/4" x 1 1/2" x 1/8" 60
10109 80
10110 100
10111 120
10112 150
10113 180
10115 240
10116 320
10118 1/4" x 2" x 1/8" 60
10119 80
10120 100
10121 120
10122 150
10123 180
10125 240
10126 320
10138 5/16" x 3/4" x 1/8" 60
10139 80
10140 100
10141 120
10142 150
10143 180
10145 240
10146 320
10148 5/16" x 1" x 1/8" 60
10149 80
10150 100
10151 120
10152 150
10153 180
10155 240
10156 320
10168 5/16" x 1 1/2" x 1/8" 60
10169 80
10170 100
10171 120
10172 150
10173 180
10175 240
10176 320
10178 5/16" x 2" x 1/8" 60
10179 80
10180 100
10181 120
10182 150
10183 180
10185 240
10186 320
10227 3/8" x 3/4" x 1/8" 36
10228 40
10229 50
10230 60
10231 80
10232 100
10233 120
10234 150
10235 180
10237 240
10238 320
10266 3/8" x 1" x 1/8" 36
10267 40
10268 50
10269 60
10270 80
10271 100
10272 120
10273 150
10274 180
10276 240
10277 320
10344 3/8" x 1 1/2" x 1/8" 36
10345 40
10346 50
10347 60
10348 80
10349 100
10350 120
10351 150
10352 180
10354 240
10355 320
Part # Diameter
x Length
x Hole		 Grit
10383 3/8" x 2" x 1/8" 36
10384 40
10385 50
10386 60
10387 80
10388 100
10389 120
10390 150
10391 180
10393 240
10394 320
10633 1/2" x 2" x 1/8" 36
10634 40
10635 50
10636 60
10637 80
10638 100
10639 120
10640+ 150
10641 180
10643 240
10644 320
10675 1/2" x 2 1/2" x 1/8" 36
10676 40
10677 50
10678 60
10679 80
10680+ 100
10681 120
10682 150
10683 180
10685 240
10686 320
10731 1/2" x 3" x 3/16" 36
10732 40
10733 50
10734 60
10735 80
10736 100
10737 120
10738 150
10739 180
10741 240
10742 320
10773 5/8" x 1" x 3/16" 36
10774 40
10775 50
10776 60
10777 80
10778 100
10779 120
10780+ 150
10781 180
10783 240
10784 320
10815 5/8" 1 1/2" 3/16" 36
10816 40
10817 50
10818 60
10819 80
10820+ 100
10821 120
10822 150
10823 180
10825 240
10826 320
10857 5/8" x 2" x 3/16" 36
10858 40
10859 50
10860+ 60
10861 80
10862 100
10863 120
10864 150
10865 180
10867 240
10868 320
10899 5/8" x 2 1/2" x 3/16" 36
10900+ 40
10901 50
10902 60
10903 80
10904 100
10905 120
10906 150
10907 180
10909 240
10910+ 320
10941 5/8" x 3" x 3/16" 36
10942 40
10943 50
10944 60
10945 80
10946 100
10947 120
10948 150
10949 180
10951 240
10952 320
10997 3/4" x 1" x 1/4" 36
10998 40
10999 50
11000+ 60
11001 80
11002 100
11003 120
11004 150
11005 180
11007 240
11008 320
Part # Diameter
x Length
x Hole		 Grit
11039 3/4" x 1 1/ 2" x 1/4" 36
11040+ 40
11041 50
11042 60
11043 80
11044 100
11045 120
11046 150
11047 180
11049 240
11050 320
11081 3/4" x 2" x 1/4" 36
11082 40
11083 50
11084 60
11085 80
11086 100
11087 120
11088 150
11089 180
11091 240
11092 320
11123 3/4" x 2 1/2" x 1/4" 36
11124 40
11125 50
11126 60
11127 80
11128 100
11129 120
11130+ 150
11131 180
11133 240
11134 320
11165 3/4" x 3" x 1/4" 36
11166 40
11167 50
11168 60
11169 80
11170+ 100
11171 120
11172 150
11173 180
11175 240
11176 320
11207 1" x 1 x 1/4" 36
11208 40
11209 50
11210+ 60
11211 80
11212 100
11213 120
11214 150
11215 180
11217 240
11218 320
11249 1" x 1 1/2" x 1/4" 36
11250+ 40
11251 50
11252 60
11253 80
11254 100
11255 120
11256 150
11257 180
11259 240
11260+ 320
11291 1" x 2" x 1/4" 36
11292 40
11293 50
11294 60
11295 80
11296 100
11297 120
11298 150
11299 180
11301 240
11302 320
11753 1 1/2" x 1 1/2" x 1/4" 36
11754 40
11755 50
11756 60
11757 80
11758 100
11759 120
11760+ 150
11761 180
11763 240
11764 320
11795 1 1/2" x 2" 1/4" 36
11796 40
11797 50
11798 60
11799 80
11800+ 100
11801 120
11802 150
11803 180
11805 240
11806 320

^Top

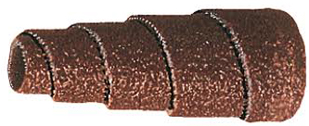

Tapered Cartridge Rolls

Full Tapered Cartridge Rolls Aluminum Oxide Resin Bond

cartridge roll

Part # Diameter
x Length
x Hole		 Grit
16046 3/8" x1" x 1/8" 36
16047 40
16048 50
16049 60
16050+ 80
16051 100
16052 120
16053 150
16054 180
16056 240
16057 320
16088 3/8" x 1 1/2" x 1/8" 36
16089 40
16090+ 50
16091 60
16092 80
16093 100
16094 120
16095 150
16096 180
16098 240
16099 320
16130+ 1/2" x 1" x 1/8" 36
16131 40
16132 50
16133 60
16134 80
16135 100
16136 120
16137 150
16138 180
16140+ 240
16141 320
16172 1/2" x 1 1/2" x 1/8" 36
16173 40
16174 50
16175 60
16176 80
16177 100
16178 120
16179 150
16180+ 180
16182 240
16183 320
16214 1/2" x 2" x 1/8" 36
16215 40
16216 50
16217 60
16218 80
16219 100
16220+ 120
16221 150
16222 180
16224 240
16225 320
16256 5/8" x 1" x 1/8" 36
16257 40
16258 50
16259 60
16260 80
16261 100
16262 120
16263 150
16264 180
16266 240
16267 320
16270+ 5/8" x 1" x 3/16" 36
16271 40
16272 50
16273 60
16274 80
16275 100
16276 120
16277 150
16278 180
16280+ 240
16281 320
Part # Diameter
x Length
x Hole		 Grit
16312 5/8" x 1 1/2" x 3/16" 36
16313 40
16314 50
16315 60
16316 80
16317 100
16318 120
16319 150
16320+ 180
16322 240
16323 320
16326 5/8" x 1 1/ 2" x 1/4" 36
16327 40
16328 50
16329 60
16330 80
16331 100
16332 120
16333 150
16334 180
16336 240
16337 320
16354 5/8" x 2" x 3/16" 36
16355 40
16356 50
16357 60
16358 80
16359 100
16360+ 120
16361 150
16362 180
16364 240
16365 320
16368 5/8" x 2" x 1/4" 36
16369 40
16370 50
16371 60
16372 80
16373 100
16374 120
16375 150
16376 180
16378 240
16379 320
16396 3/4" x 1 " x 3/16" 36
16397 40
16398 50
16399 60
16400+ 80
16401 100
16402 120
16403 150
16404 180
16406 240
16407 320
16410 3/4" x 1" x 1/4" 36
16411 40
16412 50
16413 60
16414 80
16415 100
16416 120
16417 150
16418 180
16420+ 240
16421 320
16438 3/4" x 1 1/2" x 3/16" 36
16439 40
16440+ 50
16441 60
16442 80
16443 100
16444 120
16445 150
16446 180
16448 240
16449 320
Part # Diameter
x Length
x Hole		 Grit
16452 3/4" x 1 1/2" x 1/4" 36
16453 40
16454 50
16455 60
16456 80
16457 100
16458 120
16459 150
16460+ 180
16462 240
16463 320
16480+ 3/4" x 2" x 3/16" 36
16481 40
16482 50
16483 60
16484 80
16485 100
16486 120
16487 150
16488 180
16490+ 240
16491 320
16648 1" x 1" x 3/16" 36
16649 40
16650+ 50
16651 60
16652 80
16653 100
16654 120
16655 150
16656 180
16658 240
16659 320
16662 1" x 1" x 1/4" 36
16663 40
16664 50
16665 60
16666 80
16667 100
16668 120
16669 150
16670+ 180
16672 240
16673 320
16704 1" x 1 1/2" x 1/4" 36
16705 40
16706 50
16707 60
16708 80
16709 100
16710+ 120
16711 150
16712 180
16714 240
16715 320
16746 1" x 2" x 1/4" 36
16747 40
16748 50
16749 60
16750+ 80
16751 100
16752 120
16753 150
16754 180
16756 240
16757 320

^Top

Safety Warning:
Grinding Wheels Improperly Used Are Dangerous See C.S.A. Safety Code B173.5
Use Safety Guard On Tools And Use Safety Goggle



Due to the fact that we are continuously improving our products, the descriptions, illustrations,
specifications,dimensions, and part numbers are subject to change without notice.
Every effort has been made to have the information on this site error free, we can not be responsible for errors and or omissions.
