Air Tools
Ushio Micro Die Grinders
Micro Die Grinder Kit

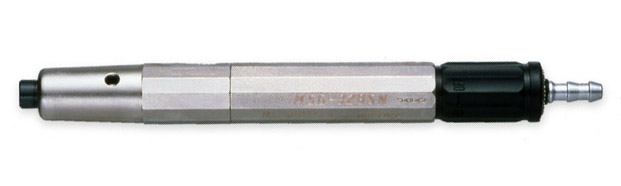

MSG3BSN ushio

MSG-3BSN
Straight

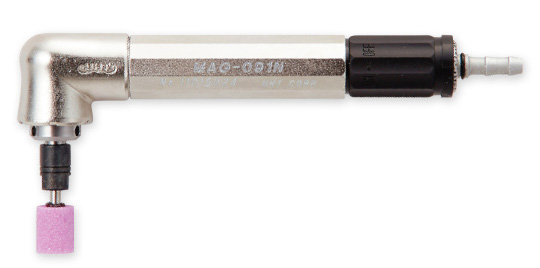

MAG091N ushio

MAG-091N
90° Angle

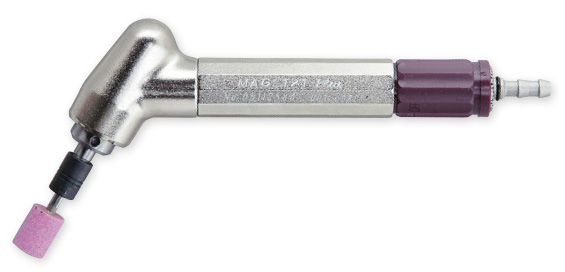

MAG121N ushio

MAG-121N
120° Angle

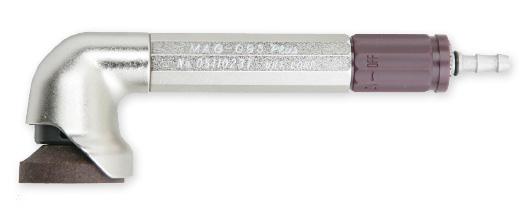

MAG093

MAG-093
90° Angle

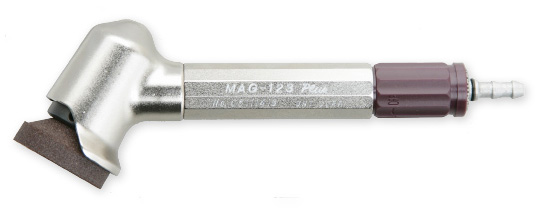

MAG123

MAG-123
120° Angle

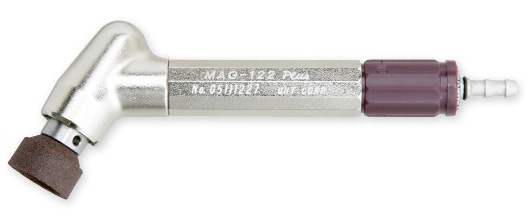

MAG122

MAG-122
120° Angle

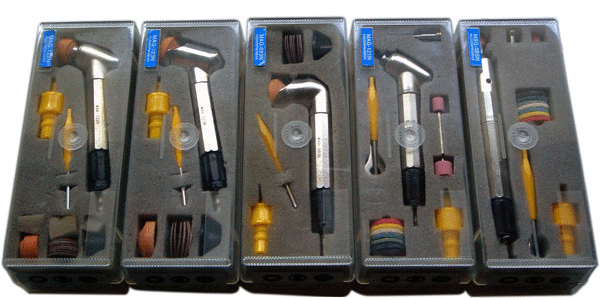

All Kits Include:

Die Grinder
Hose Adapter
1 foot Exhaust hose
Operating instructions
Set Maintenance Tools
5 foot' Air Hose
Plastic Carry Case

UHT micro die grinder kits

Airtek-Ushio Micro Grinders are to be used exclusively for precision grinding and polishing, and must be handled with extreme caution care.
Tools are sold in kits only

All tools are rear exhaust

Part # Description Collet RPM CFM Max
PSI		 Head
Length		 OAL Body
Dia.		 Weight
MSG-3BSN Straight 1/8" 65,000 4.22 90   160.5 mm 17 mm 130 gr
MAG-091N 90° Angle 3 mm 48,000 4.22 90 58 mm 114 mm 17 mm 116 gr
MAG-121N 120° Angle 1/8" 52,500 4.22 90 58 mm 154 mm 17 mm 140 gr
MAG-093 90° Angle   23,500 4.22 90 42.4 mm 139 mm 17 mm 160 gr
MAG-122 120° Angle   35,000 4.22 90 55 mm 149 mm 17 mm 140 gr
MAG-123 120° Angle   23,500 4.22 90 49 mm 152 mm 17 mm 175 gr

^Top

UHT supplies the world with high efficiency products from Japan, staring with unique grinding and polishing products. Ushio is in an endless pursuit of technological improvements.

UHT always considers the needs of the time and making product evolvements through aggressive research and development.

Due to the fact that we are continuously improving our products, the descriptions, illustrations,
specifications,dimensions, and part numbers are subject to change without notice.
Every effort has been made to have the information on this site error free, we can not be responsible for errors and or omissions.
