Brazed Tools are stocked in three grades.
Specify when ordering:
AC-2 For Non-Ferrous
AC-5 For Steel (General Purpose)
AC-6 For Steel (Finishing)
| Tool Shape | General Application | Hand | Shank Size |
| A - 0° Lead B - 15° Lead C - Square Nose D - 40° Lead E - 30° Lead F - Offset Facing G - Offset Turning |
Shouldering Turning to Lead Angle Grooving & Facing Undercutting and Chamfer Threading Facing Shouldering |
R - Right L - Left |
Under 40 size shank is square Expressed in 1/16" No. 16 = 16/16 or 1" square Over #40 size shank is rectangular 1st digit width in 1/8" increments 2nd digit height in 1/4" increments |
AR - Right Hand
AL - Left Hand
For facing to a square shoulder
For turning to a square shoulder
| Tool Style | Shank Dimensions | Nose Radius |
Carbide
Tip Dimensions |
|||||
| Right Hand | Left Hand | X | Y | Z | R | T | W | L |
| AR-4 | AL-4 | 1/4 | 1/4 | 2 | 1/64 | 3/32 | 3/16 | 5/16 |
| AR-5 | AL-5 | 5/16 | 5/16 | 2-1/4 | 1/64 | 3/32 | 1/4 | 1/2 |
| AR-6 | AL-6 | 3/8 | 3/8 | 2-1/2 | 1/64 | 3/32 | 1/4 | 1/2 |
| AR-7 | AL-7 | 7/16 | 7/16 | 3 | 1/32 | 3/32 | 1/4 | 1/2 |
| AR-8 | AL-8 | 1/2 | 1/2 | 3-1/2 | 1/32 | 1/8 | 5/16 | 5/8 |
| AR-10 | AL-10 | 5/8 | 5/8 | 4 | 1/32 | 5/32 | 3/8 | 3/4 |
| AR-12 | AL-12 | 3/4 | 3/4 | 4-1/2 | 1/32 | 3/16 | 7/16 | 13/16 |
| AR-16 | AL-16 | 1 | 1 | 7 | 1/32 | 1/4 | 9/16 | 1 |
BR - Right Hand
BL - Left Hand
For heavy boring operation where a square shoulder is not required
For rough turning where a square shoulder is not required
| Tool Style | Shank Dimensions | Nose Radius |
Carbide
Tip Dimensions |
|||||
| Right Hand | Left Hand | X | Y | Z | R | T | W | L |
| BR-4 | BL-4 | 1/4 | 1/4 | 2 | 1/64 | 1/16 | 5/32 | 1/4 |
| BR-5 | BL-5 | 5/16 | 5/16 | 2-1/4 | 1/64 | 3/32 | 3/16 | 5/16 |
| BR-6 | BL-6 | 3/8 | 3/8 | 2-1/2 | 1/64 | 3/32 | 1/4 | 1/2 |
| BR-7 | BL-7 | 7/16 | 7/16 | 3 | 1/32 | 3/32 | 1/4 | 1/2 |
| BR-8 | BL-8 | 1/2 | 1/2 | 3-1/2 | 1/32 | 1/8 | 5/16 | 5/8 |
| BR-10 | BL-10 | 5/8 | 5/8 | 4 | 1/32 | 5/32 | 3/8 | 3/4 |
| BR-12 | BL-12 | 3/4 | 3/4 | 4-1/2 | 1/32 | 3/16 | 7/16 | 13/16 |
| BR-16 | BL-16 | 1 | 1 | 7 | 1/32 | 1/4 | 9/16 | 1 |
| BR-20 | BL-20 | 1-1/4 | 1-1/4 | 8 | 1/32 | 5/16 | 5/8 | 1 |

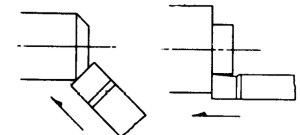

For chamfering
Modified for facing to square shoulder.
Note: Alter semi-finished tool.
| Tool Style | Shank Dimensions | Carbide
Tip Dimensions |
||||
| X | Y | Z | T | W | L | |
| C-4 | 1/4 | 1/4 | 2 | 1/16 | 1/4 | 5/16 |
| C-5 | 5/16 | 5/16 | 2-1/4 | 3/32 | 5/16 | 3/8 |
| C-6 | 3/8 | 3/8 | 2-1/2 | 3/32 | 3/8 | 3/8 |
| C-7 | 7/16 | 7/16 | 3 | 3/32 | 7/16 | 1/2 |
| C-8 | 1/2 | 1/2 | 3-1/2 | 1/8 | 1/2 | 1/2 |
| C-10 | 5/8 | 5/8 | 4 | 5/32 | 5/8 | 5/8 |
| C-12 | 3/4 | 3/4 | 4-1/2 | 3/16 | 3/4 | 3/4 |
| C-16 | 1 | 1 | 7 | 1/4 | 1 | 3/4 |
| C-44 | 1/2 | 1 | 7 | 3/16 | 1/2 | 1/2 |
For OD & ID chamfering
For undercutting and chamfering
| Tool Style | Shank Dimensions | Nose Radius |
Carbide
Tip Dimensions |
||||
| X | Y | Z | R | T | W | L | |
| D-4 | 1/4 | 1/4 | 2 | 1/64 | 1/16 | 1/4 | 5/16 |
| D-5 | 5/16 | 5/16 | 2-1/4 | 1/64 | 3/32 | 5/16 | 3/8 |
| D-6 | 3/8 | 3/8 | 2-1/2 | 1/64 | 3/32 | 3/8 | 1/2 |
| D-7 | 7/16 | 7/16 | 3 | 1/32 | 3/32 | 7/16 | 1/2 |
| D-8 | 1/2 | 1/2 | 3-1/2 | 1/32 | 1/8 | 1/2 | 1/2 |
| D-10 | 5/8 | 5/8 | 4 | 1/32 | 5/32 | 5/8 | 5/8 |
| D-12 | 3/4 | 3/4 | 4-1/2 | 1/32 | 3/16 | 3/4 | 3/4 |
| D-16 | 1 | 1 | 7 | 1/32 | 1/4 | 1 | 3/4 |
For universal threading, 30° chamfering, notching or undercutting
| Tool Style | Shank Dimensions | Carbide
Tip Dimensions |
||||
| X | Y | Z | T | W | L | |
| E-4 | 1/4 | 1/4 | 2 | 1/16 | 1/4 | 5/16 |
| E-5 | 5/16 | 5/16 | 2-1/4 | 3/32 | 5/16 | 3/8 |
| E-6 | 3/8 | 3/8 | 2-1/2 | 3/32 | 3/8 | 1/2 |
| E-8 | 1/2 | 1/2 | 3-1/2 | 1/8 | 1/2 | 9/16 |
| E-10 | 5/8 | 5/8 | 4 | 5/32 | 5/8 | 5/8 |
| E-10 | 3/4 | 3/4 | 4-1/2 | 3/16 | 3/4 | 3/4 |
ER - Right Hand
EL
- Left Hand
For OD & ID chamfering
For undercutting and chamfering
| Tool Style | Shank Dimensions | Dimension | Carbide
Tip Dimensions |
|||||
| Right Hand | Left Hand | X | Y | Z | S | T | W | L |
| ER-4 | EL-4 | 1/4 | 1/4 | 2 | 1/16 | 1/16 | 3/16 | 1/4 |
| ER-5 | EL-5 | 5/16 | 5/16 | 2-1/4 | 1/16 | 3/32 | 3/16 | 5/16 |
| ER-6 | EL-6 | 3/8 | 3/8 | 2-1/2 | 1/16 | 3/32 | 1/4 | 3/8 |
| ER-8 | EL-8 | 1/2 | 1/2 | 3-1/2 | 3/32 | 1/8 | 5/16 | 5/8 |
| ER-10 | EL-10 | 5/8 | 5/8 | 4 | 3/32 | 5/32 | 3/8 | 3/4 |
| ER-12 | EL-12 | 3/4 | 3/4 | 4-1/4 | 1/8 | 3/16 | 7/16 | 13/32 |
Brazed Tools are stocked in three grades. Specify when ordering
AC-2 For Non-Ferrous
AC-5 For Steel (General Purpose)
AC-6 For Steel (Finishing)
Due to the fact that we are continuously improving our products, the descriptions, illustrations,
specifications,dimensions, and part numbers are subject to change without notice.
Every effort has been made to have the information on this site error free, we can not be responsible for errors and or omissions.
