For large rotary hammers with
SDS-Max drive USA SDS-Max Licensed Mfg
Also fits Hilti TE-52/72/92

Fits small rotary hammers
with SDS drive

For demolition hammers which
use 3/4" Hex accessories

For large rotary hammers
with spline drive

Fits Hilti TP-800

For electric breakers requiring
1-1/8" notched shank

Moil Point

Length	SDS Max Style Shank	SDS Plus Style Shank	3/4" Hex Demo Style Shank	5/8" Round Spline Style Shank	7/8" Hex Hilti Style Shank	1-1/8" Hex Style Shank
10" 12" 14" 18" 24" 36"	5805+ 5807 5807-24 5807-36	5705	5205   5207	5005   5007	5605   5607	31200E

Flat Chisel

Length	Width	SDS Max Style Shank	SDS Plus Style Shank	3/4" Hex Demo Style Shank	5/8" Round Spline Style Shank	7/8" Hex Hilti Style Shank	1-1/8" Hex Style Shank
10" 12" 14" 18" 24" 36"	1"	5801+   5803+ 5803-24 5803-36	5701	5201   5203	5001   5003	5601	31100E

Scaling Chisel

Length	Width	SDS Max Style Shank	SDS Plus Style Shank	3/4" Hex Demo Style Shank	5/8" Round Spline Style Shank	7/8" Hex Hilti Style Shank	1-1/8" Hex Style Shank
10" 12" 18" 12" 18" 12" 14" 18"	1-1/2" 1-1/2" 1-1/2" 2" 2" 3" 3" 3"	5808+   5809+ 5811 5812   5814	5708	5208 5210 5209 5211 5212	5008 5010 5009 5011 5012	5609	31300E

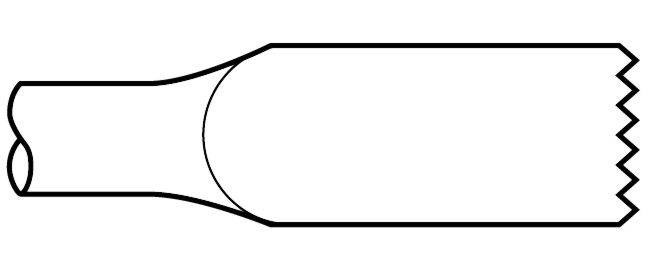

Slotting Tool

Length	Width	SDS Max Style Shank	3/4" Hex Demo Style Shank	5/8" Round Spline Style Shank
12"	1-1/8"	5813	5213	5013

Seam Tool

Length	Width	SDS Max Style Shank	SDS Plus Style Shank	3/4" Hex Demo Style Shank	5/8" Round Spline Style Shank
10" 15"	7/8" 1-1/8"	5815	5715	5215	5015

Ground Rod Driver

Length	Width	SDS Max Style Shank	3/4" Hex Demo Style Shank	5/8" Round Spline Style Shank
10-1/2"	2"	5817	5217	5017

Claw Ripper

Length	SDS Plus Style Shank
7"	5707

Panel Cutter

Length	SDS Plus Style Shank
7"	5709

Asphalt Cutter

Length	Width	SDS Max Style Shank	3/4" Hex Demo Style Shank	1-1/8" Hex Style Shank
10-1/2" 10-1/2" 11"	3-1/2" 5" 5"	5820	5220	38400E

Clay Spade

Length	Width	SDS Max Style Shank	3/4" Hex Demo Style Shank	5/8" Round Spline Style Shank	1-1/8" Hex Style Shank
15-1/2" 16"	4-1/2" 5-1/2"	5816	5216	5016	39500E

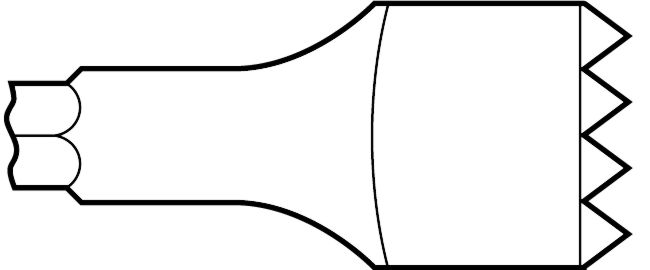

Single piece Bushing Tool

Length	SDS Max Style Shank	3/4" Hex Demo Style Shank	5/8" Round Spline Style Shank
9-1/2"	5818	5218	5018

Single piece Bushing Tool with 25 Carbide Tips

Length	SDS Max Style Shank	3/4" Hex Demo Style Shank	5/8" Round Spline Style Shank
9-1/2"	5818CB	5218CB	5018CB

2 piece Bushing Tool

	Length	SDS Max Style Shank	3/4" Hex Demo Style Shank	5/8" Round Spline Style Shank
Combined	10"	5819	5219	5019
Shank	8"	5821	5221	5021
Head		5101	5101	5101

Floor Scraper

Length	Width	SDS Max Style Shank	3/4" Hex Demo Style Shank	5/8" Round Spline Style Shank
25"	6"	5822	5222	5022
Parts
Shank 6" Flex Blade Bolt (4 needed) Nut (4 needed) Bushing (2 needed) Blade support		5822-1 5822-2 5822-3 5822-4 5822-5 5822-6	5822-2 5822-3 5822-4 5822-5 5822-6	5822-2 5822-3 5822-4 5822-5 5822-6

Wood Chisel

Length	Width	SDS Plus Style Shank
.393" .551" .787" 1.023" 1.181"	7"	5725 5726 5727 5728 5729
