Part # GPB-60S

Demolition tool is designed to deliver the power and durability necessary for a variety of construction and plant maintenance applications such as breaking heavy concrete, reinforced concrete, frozen ground, macadam boulders and pavement.

Features:

Alloy steel forgings for excellent durability.
Heavy-duty front head springs reduce shock.
Reversible piston reduces maintenance cost.
Four bolt back head withstands rugged use.
Air inlet swivel for easy maneuverability.
Integral oilier provides continuous lubrication.

Specifications:

Piston Stroke : 100 mm
Stroke Speed : 1,400 bpm
Net Weight : 30.0 kg
Length : 645 mm
Air Cons. : 71 cfm
Air Inlet : 1/2"
Hose Size : 19 mm
Air Pressure : 90 psi

^Top

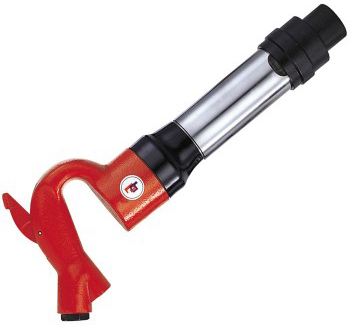

Part # GP-894

Round Shank / Oval Collar
Piston Stroke : 64 mm
Stroke Speed : 2,200 bpm
Net Weight : 7.5 kg
Length : 450 mm
Air Cons. : 32 cfm
Air Inlet : 3/8"
Hose Size : 8 mm
Air Pressure : 90 psi

^Top

Part # GP-150

Round Shank .401"
Piston Stroke : 41 mm
Stroke Speed : 4,500 bpm
Net Weight : 1.20 kg
Length : 150 mm
Air Cons. : 4 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Pressure : 90 psi

Part # GP-190

Round Shank .401"
Piston Stroke : 67 mm
Stroke Speed : 3,200 bpm
Net Weight : 1.60 kg
Length : 190 mm
Air Cons. : 4 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Pressure : 90 psi

Part # GP-150SQ

Round Shank .401"
Piston Stroke : 41 mm
Stroke Speed : 4,500 bpm
Net Weight : 1.36 kg
Length : 133 mm
Air Cons. : 4 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Pressure : 90 psi

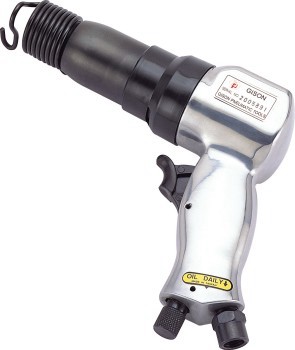

Part # GP-190SQ

Round Shank .401"
Piston Stroke : 67 mm
Stroke Speed : 3,000 bpm
Net Weight : 1.59 kg
Length : 171 mm
Air Cons. : 4 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Pressure : 90 psi

Part # GP-250

Round Shank .401"
Piston Stroke : 89 mm
Stroke Speed : 2,000 bpm
Net Weight : 2.20 kg
Length : 250 mm
Air Cons. : 4 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Pressure : 90 psi

^Top

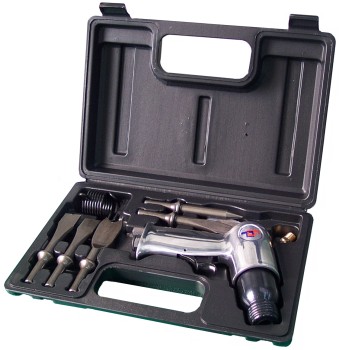

Part # GP-150K

1 GP-150
1 Retainer
5 Chisels
1 Mini Oiler
1 Nipple
1 Plastic Box

Part # GP-190K

1 GP-190
1 Retainer
5 Chisels
1 Mini Oiler
1 Nipple
1 Plastic Box

Part # GP-150SQK

1 GP-150SQ
1 Retainer
5 Chisels
1 Mini Oiler
1 Nipple
1 Plastic Box

Part # GP-250K

1 GP-250
1 Retainer
5 Chisels
1 Mini Oiler
1 Nipple
1 Plastic Box

^Top

Qucik change Retainer for GP-150/190/250 series

Part # SQ-003

Chisel Set for GP-150/190/250 Series .401 shank

Part # HPT-09R

5 pieces 175 mm long
& 4 pieces 125 mm long

^Top

Part # GP-923

Single Piston Scaling Hammer

Piston Stroke : 15 mm
Stroke Speed : 7,200 bpm
Net Weights : 1.90 kg
Length : 480 mm
Air Cons. : 10.6 cfm
Air Inlet : 1/4"
Hose Size : 8 mm
Air Pressure : 90 psi

Part # GP-923A

Triple Piston Scaling Hammer

Piston Stroke : 22.5 mm
Stoke Speed : 2,800 bpm
Net Weight : 3.90 kg
Length : 496 mm
Air Cons. : 11.7 cfm
Air Inlet : 3/8"
Hose Size : 8 mm
Air Pressure : 90 psi

^Top

Part # GP-131

Stroke Speed : 400 bpm
Net Weight : 0.70 kg
Length : 248 mm
Air Cons. : 4.3 cfm
Air Inlet : 1/4"
Hose Size : 8 mm
Air Pressure : 90 psi

^Top

Part # GAH-15

Net Weight : 0.60 kg
Length : 92 mm
Air Cons. : 10.6 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm (ID)

^Top
