Cutting Tools
Viking Drill & Tool
Carbon Steel Fractional and Machine Taps

Taper - Types 740 Fractional & 741 Machine Screw
Plug - Types 720 Fractional & 721 Machine Screw
Bottoming - Types 760 Fractional & 761 Machine Screw
Sets - Types 723 Fractional & 722 Machine Screw (Contains 1 each Taper, Plug & Bottoming)

Made of super tough carbon steel, these taps are ideal for hand tapping applications. Taps are offered in three different styles. All taps
have the size drill to use permanently marked on the tap. These items are manufactured to U.S. industry specifications and may be imported.

Taper Tap

taper tap

Plug Tap

plug tap

Bottoming Tap

bottoming tap

Taper Plug Bottoming Sets Size No. of Flutes
54790 54860 54930   0-80 3
54800 54870 54940   1-64 3
54810 54880 54950   1-72 3
54820 54890 54960   2-56 3
54830 54900 54970   2-64 3
54840 54910 54980   3-48 3
54850 54920 54990   3-56 3
55900 55750 56100 56600 4-36 3
55910 55760 56110 56610 4-40 3
55920 55770 56120 56620 5-40 3
55930 55780 56130 56630 6-32 3
55940 55790 56140 56640 6-40 3
55950 55800 56150 56650 6-48 3
55960 55810 56160 56660 8-32 3
55970 55820 56170 56670 8-36 3
55980 55830 56180 56680 8-40 3
55990 55840 56190 56690 10-24 3
56000 55850 56200 56700 10-32 3
56010 55860 56210 56710 12-24 3
56020 55870 56220 56720 12-28 3
56030 55880 56230 56730 14-20 3
55250 55010 55500 56300 3/16-24 3
55260 55020 55510 56310 3/16-32 3
55270 55030 55520 56320 1/4-20 3
55280 55040 55530 56330 1/4-28 3
55290 55050 55540 56340 5/16-18 4
55300 55060 55550 56350 5/16-24 4
55310 55070 55560 56360 3/8-16 4
55320 55080 55570 56370 3/8-24 4
55330 55090 55580 56380 7/16-14 4
55340 55100 55590 56390 7/16-20 4
55350 55110 55600 56400 1/2-13 4
55360 55120 55610 56410 1/2-20 4
55370 55130 55620 56420 9/16-12 4
55380 55140 55630 56430 9/16-18 4
55390 55150 55640 56440 5/8-11 4
55460 55720 56040 56590 5/8-18 4
55470 55730 56050 56740 11/16-11 4
55480 55740 56060 56750 11/16-16 4
55400 55160 55650 56450 3/4-10 4
55710 55890 56070 56760 3/4-16 4
55410 55170 55660 56460 7/8-9 4
55420 55180 55670 56470 7/8-14 4
55430 55190 55680 56480 1-8 4
55440 55200 55690 56490 1-12 4
55450 55210 55700 56500 1-14 4

^Top

NPT Carbon Steel Taps

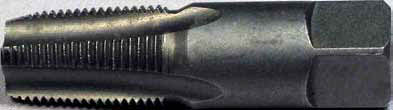

Type 410 NPT Pipe Tap

Made of super tough carbon steel, these taps are ideal for hand tapping applications.
All taps have the size drill to use permanently marked on the tap.
These items are manufactured to U.S. industry specifications and may be imported.

NPT tap

NPT Size No. of Flutes
56910 1/8-27 4
56920 1/4-28 4
56930 3/8-18 4
56940 1/2-14 4
56950 3/4-14 4
56960 1 X 11-1/2 4
56970 1-1/4 X 11-1/2 4
56980 1-1/2 X 11-1/2 7
56990 2 X 11-1/2 6

^Top

Metric Carbon Steel Plug Taps Type 780

Plug - Type 780 Metric Plug

Hi-Carbon Steel Taps
All popular sizes offered for foreign car, motorcycle, and machinery threading needs. Made of tough carbon steel to
exacting specifications. Offered in plug style only and permanently marked with drill size for use.

plug tap

Plug Size No. of Flutes
83010 3x.50 3
83020 3x.60 3
83030 4x.70 3
83040 4x.75 3
83050 5x.80 3
83060 6x1.00 3
83080 7x1.00 4
84230 8x1.00 4
83090 8x1.25 4
83100 9x1.00 4
83110 9x1.25 4
56800 10x1.00 4
83130 10x1.25 4
83140 10x1.50 4
83150 11x1.50 4
84240 12x1.25 4
83160 12x1.50 4
83170 12x1.75 4
56810 14x1.25 4
84250 14x1.50 4
83190 14x2.00 4
83200 16x1.50 4
83210 16x2.00 4
56820 18x1.50 4
84260 18x2.00 4
83230 18x2.50 4

^Top



Due to the fact that we are continuously improving our products, the descriptions, illustrations,
specifications,dimensions, and part numbers are subject to change without notice.
Every effort has been made to have the information on this site error free, we can not be responsible for errors and or omissions.
