Cutting Tools
Viking Drill & Tool
Jobber Length Drill - Type 240

General Purpose - Dia.® Surface Treated

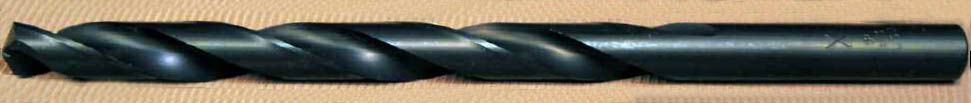

viking jobber drill

This 118° point, high speed steel drill performs well in a wide variety of ferrous metal drilling applications.
The black surface treatment prevents chip welding and increases abrasion resistance.

Jobber Length Drill Bright Finish - Type 240-B

General Purpose - Brite-Flute®

viking jobber drill

This 118° point, high speed speed steel drill performs well in a wide variety of drilling applications.
Its is recommended for non-ferrous metals, wood and plastics.

Jobber Length Drill Heavy Duty - Type 240-A

Heavy Duty - Dia.® Surface Treated

viking jobber drill

This 135° split point drill is self centering and requires less thrust in drilling harder metal than a general purpose drill.
It is recommended for medium hardness metal drilling applications.

Fractional Sizes

240-B
Part #		 240
Part #		 240-A
Part #		 Size OAL Flute
Length
02750 01000   1/64 3/4 3/16
02760 01010   1/32 1-3/8 1/2
02770 01020   3/64 1-3/4 3/4
02780 01030 04490 1/16 1-7/8 7/8
02790 01040 04500 5/64 2 1
02800 01050 04510 3/32 2-1/4 1-1/4
16810 05870 16040 7/64 2-5/8 1-1/2
16820 05880 16550 1/8 2-3/4 1-5/8
16830 05890 16560 9/64 2-7/8 1-3/4
16840 05900 16570 5/32 3-1/8 2
16850 05910 16580 11/64 3-1/4 2-1/8
16860 05920 16590 3/16 3-1/2 2-5/16
16870 05930 16600 13/64 3-5/8 2-7/16
16880 05940 16610 7/32 3-3/4 2-1/2
16890 05950 16620 15/64 3-7/8 2-5/8
16900 05960 16630 1/4 4 2-3/4
16910 05970 16640 17/64 4-1/8 2-7/8
16920 05980 16650 9/32 4-1/4 2-15/16
16930 05990 16670 19/64 4-3/8 3-1/16
16940 06000 16680 5/16 4-1/2 3-3/16
16950 06010 16690 21/64 4-5/8 3-5/16
16960 06020 16700 11/32 4-3/4 3-7/16
16970 06030 16710 23/64 4-7/8 3-1/2
16980 06040 16720 3/8 5 3-5/8
16990 06050 16730 25/64 5-1/8 3-3/4
17000 06060 16740 13/32 5-1/4 3-7/8
17010 06070 16750 27/64 5-3/8 3-15/16
17020 06080 16760 7/16 5-1/2 4-1/16
17030 06090 16770 29/64 5-5/8 4-3/16
17040 06100 16780 15/32 5-3/4 4-5/16
17050 06110 16790 31/64 5-7/8 4-3/8
17060 06120 16800 1/2 6 4-1/2
  01320   33/64 6-5/8 4-13/16
  01330   17/32 6-5/8 4-13/16
  01340   35/64 6-5/8 4-13/16
  01350   9/16 6-5/8 4-13/16
  01360   37/64 6-5/8 4-13/16
  01370   19/32 7-1/8 5-3/16
  01380   39/64 7-1/8 5-3/16
  01390   5/8 7-1/8 5-3/16
  01400   41/64 7-1/8 5-3/16
  01410   21/32 7-1/8 5-3/16
  01420   43/64 7-5/8 5-5/8
  01430   11/16 7-5/8 5-5/8

Letter Sizes

240-B
Part #		 240
Part #		 240-A
Part #		 Size OAL Flute
Length
04160 02410 05300 A 3-7/8 2-5/8
04170 02420 05310 B 4 2-3/4
04180 02430 05320 C 4 2-3/4
04190 02440 05330 D 4 2-3/4
04200 02450 05340 E 4 2-3/4
04210 02460 05350 F 4-1/8 2-7/8
04220 02470 05360 G 4-1/8 2-7/8
04230 02480 05370 H 4-1/8 2-7/8
04240 02490 05380 I 4-1/8 2-7/8
04250 02500 05390 J 4-1/8 2-7/8
04260 02510 05400 K 4-1/4 2-15/16
04270 02520 05410 L 4-1/4 2-15/16
04280 02530 05420 M 4-3/8 3-1/16
04290 02540 05430 N 4-3/8 3-1/16
04300 02550 05440 O 4-1/2 3-3/16
04310 02560 05450 P 4-5/8 3-5/16
04320 02570 05460 Q 4-3/4 3-7/16
04330 02580 05470 R 4-3/4 3-7/16
04340 02590 05480 S 4-7/8 3-1/2
04350 02600 05490 T 4-7/8 3-1/2
04360 02610 05500 U 5 3-5/8
04370 02620 05510 V 5 3-5/8
04380 02630 05520 W 5-1/8 3-3/4
04390 02640 05530 X 5-1/8 3-3/4
04400 02650 05540 Y 5-1/4 3-7/8
04410 02660 05550 Z 5-1/4 3-7/8

^Top

Wire Sizes

240-B
Part #		 240
Part #		 240-A
Part #		 Size OAL Flute
Length
03190 01440 04780 1 3-7/8 2-5/8
03200 01450 04790 2 3-7/8 2-5/8
03210 01460 04800 3 3-3/4 2-1/2
03220 01470 04810 4 3-3/4 2-1/2
03230 01480 04820 5 3-3/4 2-1/2
03240 01490 04830 6 3-3/4 2-1/2
03250 01500 04840 7 3-5/8 2-7/16
03260 01510 04850 8 3-5/8 2-7/16
03270 01520 04860 9 3-5/8 2-7/16
03280 01530 04870 10 3-5/8 2-7/16
03290 01540 04880 11 3-1/2 2-5/16
03300 01550 04890 12 3-1/2 2-5/16
03310 01560 04900 13 3-1/2 2-5/16
03320 01570 04910 14 3-3/8 2-3/16
03330 01580 04920 15 3-3/8 2-3/16
03340 01590 04930 16 3-3/8 2-3/16
03350 01600 04940 17 3-3/8 2-3/16
03360 01610 04950 18 3-1/4 2-1/8
03370 01620 04960 19 3-1/4 2-1/8
03380 01630 04970 20 3-1/4 2-1/8
03390 01640 04980 21 3-1/4 2-1/8
03400 01650 04990 22 3-1/8 2
03410 01660 05000 23 3-1/8 2
03420 01670 05010 24 3-1/8 2
03430 01680 05020 25 3 1-7/8
03440 01690 05030 26 3 1-7/8
03450 01700 05040 27 3 1-7/8
03460 01710 05050 28 2-7/8 1-3/4
03470 01720 05060 29 2-7/8 1-3/4
03480 01730 05070 30 2-3/4 1-5/8
03490 01740 05080 31 2-3/4 1-5/8
03500 01750 05090 32 2-3/4 1-5/8
03510 01760 05100 33 2-5/8 1-1/2
03520 01770 05110 34 2-5/8 1-1/2
03530 01780 05120 35 2-5/8 1-1/2
03540 01790 05130 36 2-1/2 1-7/16
03550 01800 05140 37 2-1/2 1-7/16
03560 01810 05150 38 2-1/2 1-7/16
03570 01820 05160 39 2-3/8 1-3/8
03580 01830 05170 40 2-3/8 1-3/8
03590 01840 05180 41 2-3/8 1-3/8
03600 01850 05190 42 2-1/4 1-1/4
03610 01860 05200 43 2-1/4 1-1/4
03620 01870 05210 44 2-1/8 1-1/8
03630 01880 05220 45 2-1/8 1-1/8
03640 01890 05230 46 2-1/8 1-1/8
03650 01900 05240 47 2 1
03660 01910 05250 48 2 1
03670 01920 05260 49 2 1
240-B
Part #		 240
Part #		 240-A
Part #		 Size OAL Flute
Length
03680 01930 05270 50 2 1
03690 01940 05280 51 2 1
03700 01950 05290 52 1-7/8 7/8
03710 01960   53 1-7/8 7/8
03720 01970   54 1-7/8 7/8
03730 01980   55 1-7/8 7/8
03740 01990   56 1-3/4 3/4
03750 02000   57 1-3/4 3/4
03760 02010   58 1-5/8 11/16
03770 02020   59 1-5/8 11/16
03780 02030   60 1-5/8 11/16
03790 02040   61 1-5/8 11/16
03800 02050   62 1-1/2 5/8
03810 02060   63 1-1/2 5/8
03820 02070   64 1-1/2 5/8
03830 02080   65 1-1/2 5/8
03840 02090   66 1-3/8 1/2
03850 02100   67 1-3/8 1/2
03860 02110   68 1-3/8 1/2
03870 02120   69 1-3/8 1/2
03880 02130   70 1-1/4 3/8
03890 02140   71 1-1/4 3/8
03900 02150   72 1-1/8 5/16
03910 02160   73 1-1/8 5/16
03920 02170   74 1 1/4
03930 02180   75 1 1/4
03940 02190   76 7/8 3/16
03950 02200   77 7/8 3/16
03960 02210   78 7/8 3/16
03970 02220   79 3/4 1/8
03980 02230   80 3/4 1/8
03990     81 3/4 3/32
04000     82 3/4 3/32
04010     83 3/4 3/32
04020     84 3/4 3/32
04030     85 3/4 3/32
04040     86 3/4 3/32
04050     87 3/4 5/64
04060     88 3/4 5/64
04070     89 3/4 5/64
04080     90 3/4 5/64
04090     91 3/4 5/64
04100     92 3/4 1/16
04110     93 3/4 1/16
04120     94 3/4 1/16
04130     95 3/4 1/16
04140     96 3/4 1/16
04150     97 3/4 1/16

^Top

Sets

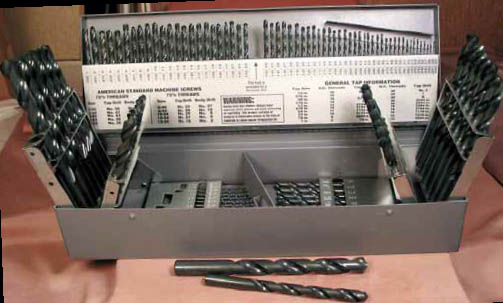

Drill SET

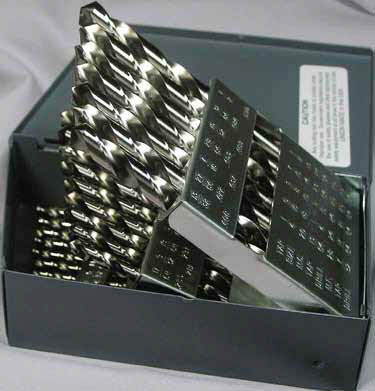

drill set

Part # Set No. Contents Type
44260 PL-7 1/16 - 1/4 X 32nds 240-B
44270 PL-10 1/16 - 5/32 X 64ths
3/16, 7/32 & 1/4		 240-B
44280 PL-13 1/16 - 1/4 X 64ths 240-B
43400 J-10 1/16 - 5/32 X 64ths
3/16, 7/32 & 1/4		 240-B
43410 J-11 1/16 - 3/8 X 32nds 240-B
43430 J-13 1/16 - 1/4 X 64ths 240-B
43450 J-15 1/16 -1/2 X 32nds 240-B
43460 J-20 61 - 80 240-B
43480 J-21 1/16 - 3/8 X 32nds 240-B
43500 J-26 A - Z 240-B
43520 J-29 1/16 - 1/2 X 64ths 240-B
43540 J-60 1 - 60 240-B
43550 J-115 1/16 - 1/2 X 64ths
A - Z & 1 - 60		 240-B
43570 TRI-1 1/16 - 1/4 X 64ths 240-B
42000 B-10 1/16 - 5/32 X 64ths
3/16, 7/32 & 1/4		 240
42010 B-11 1/16 - 3/8 X 32nds 240
42020 B-13 1/16 - 1/4 X 64ths 240
42030 B-15 1/16 - 1/2 X 32nds 240
42040 B-20 61 - 80 240
42050 B-21 1/16 - 3/8 X 64ths 240
42060 B-26 A - Z 240
42070 B-29 1/16 - 1/2 X 64ths 240
42080 B-60 1 - 60 240
43440 B-115 1/16 - 1/2 X 64ths
A - Z & 1 - 60		 240
43330 A-10 1/16 - 5/32 X 64ths
3/16, 7/32 & 1/4		 240-A
43320 A-11 1/16 - 3/8 X 32nds 240-A
43340 A-13 1/16 - 1/4 X 64ths 240-A
43350 A-15 1/16 - 1/2 X 32nds 240-A
43360 A-21 1/16 - 3/8 X 64ths 240-A
43370 A-26 A - Z 240-A
43380 A-29 1/16 - 1/2 X 64ths 240-A
43390 A-60 1 - 60 240-A
43420 A-115 1/16 - 1/2 X 64ths
A - Z & 1 - 60		 240-A

^Top



Due to the fact that we are continuously improving our products, the descriptions, illustrations,
specifications,dimensions, and part numbers are subject to change without notice.
Every effort has been made to have the information on this site error free, we can not be responsible for errors and or omissions.
