* Maximum pressure and temperature with Differential Pressure Indicator is 0-150 psig and 32° ~ 125° F

* With Automatic Drain

Features:

Removes liquid aerosols and sub-micron particles
Liquids gravitate to the bottom of the element and will not re-enter the airstream
Oil free air for critical applications, such as air gauging and pneumatic instrumentation and controls
Interchangeable twist and automatic float drains
Differential pressure indicator standard
4.4 oz. bowl capacity
Manual drain standard, optional automatic float drain available
Shown with recommended metal bowl guard
0.01 Micron Element Grade 6 (Standard) "E"
1.0 Micron Element Grade 10 (Optional) "H"

High Flow:
(@ 90 PSIG inlet and 5 PSIG Pressure drop)
1/4" - 45 SCFM Grade 6 Element
3/8" - 48 SCFM Grade 6 Element
1/2" - 65 SCFM Grade 6 Element

^Top

PM30-08-M00

*** Dry Media flow capacity ***

3/4" 173 scfm (81.0 dm3/s, ANR)
1" 203 scfm (96.0 dm3/s, ANR)

^Top

35F87EAP

Note: Some units are available without indicator

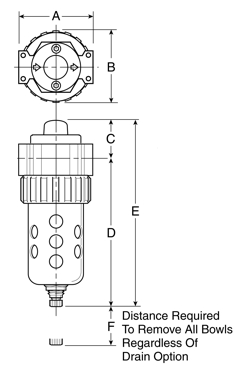

"G" Differential Pressure Gauge add 2" to C & E (Ships loose)

Features:

Heavy-duty cast aluminum housings to withstand
operating pressures up to 250 PSIG***
Differential pressure indicator to eliminate
the guesswork of element replacement
Differential pressure gauge available,
order separately, Kit DP3-01-000
Unique drain mounting plate design offers a trouble-free method
for interchanging and installing external drains

High-flow filter elements:
1 micron and 0.01 Micron

High flow:
1-1/2" – 710 SCFM§
2" – 710 SCFM§
3" – 1770 SCFM§

***Without Differential Pressure Indicator –
Max. supply pressure is 250 PSIG (20.7 bar).

^Top

Applications:

.3 µM Filter for protection highly sensitive pneumatic equipment
(Logic, Bearings, High Speed Tools, Robotics).
.7 µM Filter for general contamination removal in standard industrial applications.

Features:

Void volumes as high as 95% for maximum loading and long element life.
Resin binder prevents media migration downstream.

Particulate Filters (F702)

.9 µM absolute rating.
99.9% efficiency.
Removes particulate contamination
(rust, scale, dust) from compressed air lines.
Used before a coalescing filters in systems with excessive liquid and particulate contamination.
Place after desiccant dryer to prevent desiccant dust from migrating downstream.
Pleated design provides large surface area for maximum particle retention capacity.

Absorber Filters (F702)

Removes oils and hydrocarbon to .001 PPM
Use to eliminate odors and hydrocarbon vapors.

(Note: Always place a .3µM coalescing filter before absorber.)

Coalescing Filters .3uM element

Coalescing Filters .7µM element

Particulate Filters .9µM element

Absorber Filters
