F504 - Particulate Filter
F501 - Coalescing Filter
F507 - Oil Removal Filter
| Part # | Port Size | Bowl Type | Flow SCFM | Temperature Range | Pressure Range |
| F504-01A | 1/8" | A: Polycarbonate | 22 | 40° ~ 120° F | 150 PSIG max. |
| F504-02A | 1/4" | A: Polycarbonate | 22 | 40° ~ 120° F | 150 PSIG max. |
| F501-04A | 1/8" | A: Polycarbonate | 8 | 40° ~ 120° F | 150 PSIG max. |
| F501-02A | 1/4" | A: Polycarbonate | 8 | 40° ~ 120° F | 150 PSIG max. |
| F507-01A | 1/8" | A: Polycarbonate | 10 | 40° ~ 120° F | 150 PSIG max. |
| F507-02A | 1/4" | A: Polycarbonate | 10 | 40° ~ 120° F | 150 PSIG max. |
| F504-01D | 1/8" | D: Zinc | 22 | 40° ~ 180° F | 300 PSIG max. |
| F504-02D | 1/4" | D: Zinc | 22 | 40° ~ 180° F | 300 PSIG max. |
| F501-01D | 1/8" | D: Zinc | 8 | 40° ~ 180° F | 300 PSIG max. |
| F501-02D | 1/4" | D: Zinc | 8 | 40° ~ 180° F | 300 PSIG max. |
| F507-01D | 1/8" | D: Zinc | 10 | 40° ~ 180° F | 300 PSIG max. |
| F507-02D | 1/4" | D: Zinc | 10 | 40° ~ 180° F | 300 PSIG max |
F504-02A
F504-02D
Standard Features:
F504 - Particulate (20 micron
polypropylene elements - H)
F501 - Coalescing (.3 micron
element - H)
F507 - Oil removal (.7 micron
element - O)
Aluminum body
1 oz. bowl capacity
Manual drain
Options:
Substitute Features (substitute letter in product number)
5 micron element (F504 only) - G
Additional Features (add letter to product number)
Piston drain - S
With mounting bracket - X67
Accessories:
Piston drain for all models shown part # RK504SY
Mounting bracket for all models shown. Must be ordered as X67
Note: X67 option must be ordered with filter or drilling of filter head will be required.
| Part # | Bowl Kits | Bowl Type |
| BK504Y | Polycarbonate | A |
| BK505Y | Zinc | D |
| BK504SY | Polycarbonate Bowl With Piston Drain | A |
| BK505SY | Zinc bowl with piston drain | D |
| Element | ||
| EK504VY | 5 micron particulate | A,D |
| EK504Y | 20 micron particulate | A,D |
| EKF504Y | .3 micron coalescing | A,D |
| EKF507 | .7 micron oil removal | A,D |
| Part # | Port Size | Bowl & Drain Type | Temperature Range | Maximum Pressure |
| 06F12AC | 1/4" | Polycarbonate bowl / Metal bowl guard / Twist Drain | 32° ~ 125° F | 150 psig |
| 06F22AC | 3/8" | Polycarbonate bowl / Metal bowl guard / Twist Drain | 32° ~ 125° F | 150 psig |
| 06F32AC | 1/2" | Polycarbonate bowl / Metal bowl guard / Twist Drain | 32° ~ 125° F | 150 psig |
| 06F14AC | 1/4" | Metal bowl / Sight glass / Twist Drain | 32° ~ 175° F | 250 psig |
| 06F24AC | 3/8" | Metal bowl / Sight glass / Twist Drain | 32° ~ 175° F | 250 psig |
| 06F34AC | 1/2" | Metal bowl / Sight glass / Twist Drain | 32° ~ 175° F | 250 psig |

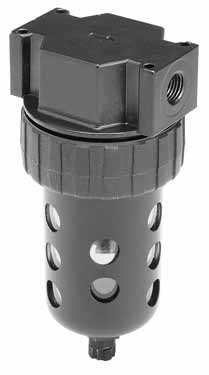

| F602 Filter Dimensions | |||
| A 2.81" |
B 2.74" |
C 0.53" |
D 5.69" |
| D* 5.74" |
E 6.22" |
E* 6.27" |
F 2.25" |
* With Automatic Drain
Features:
Excellent water removal efficiency
Unique deflector plate and shroud creates a swirling of the air stream ensuring maximum water and dirt separation
Large filter element surface guarantees low pressure drop and increased element life
40 Micron element
4.4 oz. bowl capacity
Manual drain Standard, optional automatic float drain available
Shown with recommended metal bowl guard.
High Flow:
(@ 90 PSIG inlet and 5 PSIG Pressure drop)
1/4" - 53 SCFM
3/8" - 80 SCFM
1/2" - 85 SCFM
| Part # | Kits & Accessories |
| PS705 | Bowl Guard Kit |
| PS722 | Poly Bowl C/W Automatic Float Drain |
| PS732 | Poly Bowl C/W Twist Drain |
| PS726 | Metal Bowl C/W Automatic Float Drain |
| PS734 | Metal Bowl C/W Twist Drain |
| PS723 | Metal Bowl C/W Sight Gauge & Automatic Float Drain |
| PS735 | Metal Bowl C/W Sight Gauge & Twist Drain |
| PS506 | Automatic Float Drain |
| PS512 | Twist Drain |
| PS701 | 40 Micron Element |
| PS702 | 5 Micron Element |
| PS731 | Absorber Element |
| PS743 | Mounting Bracket |
| PS914 | Sight Gauge Kit |
For heavy duty applications with minimum pressure drop requirements
F602-08W
| Part # | Port Size | Bowl Type | Bowl Capacity | Temperature Range | Pressure Range |
| F602-06W | 3/4" | W: Zinc with sight glass | 16 oz | 40° ~ 150° F | 250 psig max |
| F602-08W | 1" | W: Zinc with sight glass | 16 oz | 40° ~ 150° F | 250 psig max |
| F602-12W | 1-1/2" | W. Zinc with sight glass | 16 oz | 40° ~ 150° F | 250 psig max |
| F602-06E | 3/4" | E: Steel | 32 oz | 40° ~ 180° F | 300 psig max |
| F602-08E | 1" | E: Steel | 32 oz | 40° ~ 180° F | 300 psig max |
| F602-12E | 1-1/2" | E: Steel | 32 oz | 40° ~ 180° F | 300 psig max |
Standard Features:
40 micron polypropylene element
- J
Zinc body
Manual drain
Options:
Substitute Features (substitute letter in product number)
5 micron element - G
Additional Features (add letter to product number)
External auto drain - Q
Internal auto drain - R
| Part # | Bowl Kits | Bowl Type |
| BK605WB | Zinc with sight glass | W |
| BK603B | Steel | E |
| Element Kits | ||
| EK602B | 40 micron | W, E |
| EK602VB | 5 micron | W, E |
| Repair Kits | ||
| RK602B | Deflector, baffle assembly and retaining
rod (for 3/4" & 1" units) |
W, E |
| RK602C | Deflector, baffle assembly and retaining rod (for 1-1/4 & 1-1/2" units) |
W, E |
| RKB605WB | Sight glass, O-rings, indicator float, retainer & retainer O-ring | W |
Accessories:
Mounting bracket for F602-06
Part # SA200AW57
Mounting Bracket for F602-08
Part # SA200CW57
(Two required per unit)
External auto drain
Part # SA603D for E bowl
Part # SA602D for B & W bowls
Internal auto drain for all models shown
Part # SA602MD Plastic Tip
Part # SA605MD Brass Tip
Maximum temperature: 120°F
Maximum pressure: 175 PSIG
External auto drain repair kit RK602D
Internal auto drain repair kit RK602MD
For heavy duty applications with minimum pressure drop requirements
35F87BAP
| Part # | Port Size | Bowl Type | Bowl Capacity | Temperature Range | Pressure Range |
| 35F87BAN | 2" | Metal bowl / auto drain | 13.9 oz | 32° ~ 150° F | 250 psig max |
| 43FN7BAN | 3" | Metal bowl / auto drain | 17.2 oz | 32° ~ 180° F | 250 psig max |
Standard Features:
• Heavy-duty cast aluminum housings to withstand operating
pressures up to 250 psig without differential gauge
• Unique drain mounting plate design offers a trouble-free
method for interchanging and installing external drains
• 2" (35F), 3" (43F) ports, NPT
| Part # | Kits & Accessories |
| GRP-95-022 | Differential pressure indicator cap for pressures over 150 psig |
| DP3-01-000 | Differential pressure gauge |
| DP2-02-001 | Differential pressure indicator |
| GRP-95-981 | Auto drain, 1/8 NPT |
| GRP-95-393 | Drain plate kit, 1/2 NPT tapped drain port |
| FRP-95-505 | Element, 5 micron (35F) |
| FRP-95-508 | Element, 5 micron (43F) |
| GRP-95-392 | Manual drain kit with 1/2" drain plate |
Due to the fact that we are continuously improving our products, the descriptions, illustrations,
specifications,dimensions, and part numbers are subject to change without notice.
Every effort has been made to have the information on this site error free, we can not be responsible for errors and or omissions.
